Features

- High mechanical strength with interlayer engagement

- Excellent fatigue resistance, impact resistance, flexural rigidity, and light weight resistance

- Enlarged 2D braiding, it shows fully 3D geometry

- Horn gears and tracks for carrier transport are constructed on multiple adjacent layers and rotated and cross-transfers along the desired product geometry of bobbin carriers mounted on these layers

- 3D Near Net Shape Preform production of interlayer bonded structures is possible.

Specification

- Model : TFB 3C 720

- Dimension (mm) : 3500(W) x 2000(L) x 3600(H)

- Braiding Type : Vertical Type

- Rotation Ring : 7 Rings

- Fixed Ring : 2 Rings

- Braiding Carrier : 384SET

- Axial Yarn Carrier : 336SET

- Bobbin : 720EA

- Carrier Transfer : AIR CYL" ￠32-75ST

- Winding Roller : Rubber Coating ￠250 x 500L

- Bobbin Winder : Filament Winder

- Electric Control : PC Controller

- Control Card : 2 Axis Motion Controller

- Software : Revocircular Version 1

Video

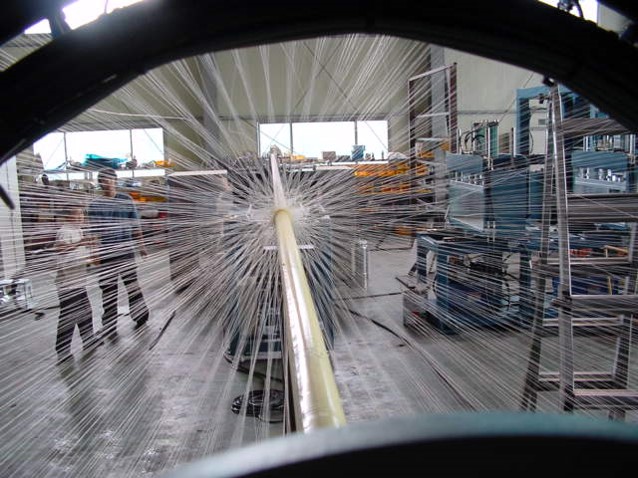

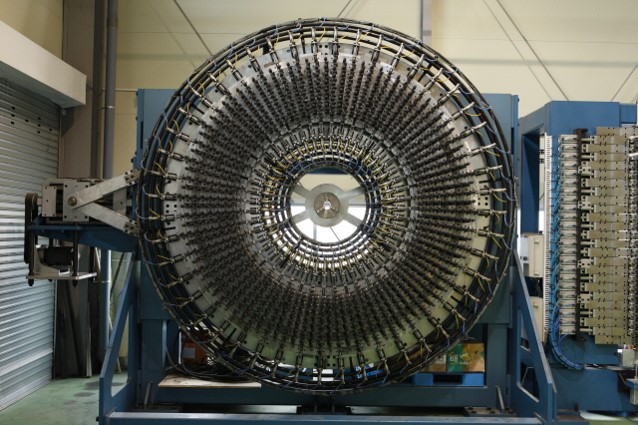

Pictures
