Radial braiding machine (48/72/144 carrier)

최고관리자

Data 2021-07-21

Views 1,014

Features

- Applied conventional 2D braiding machine

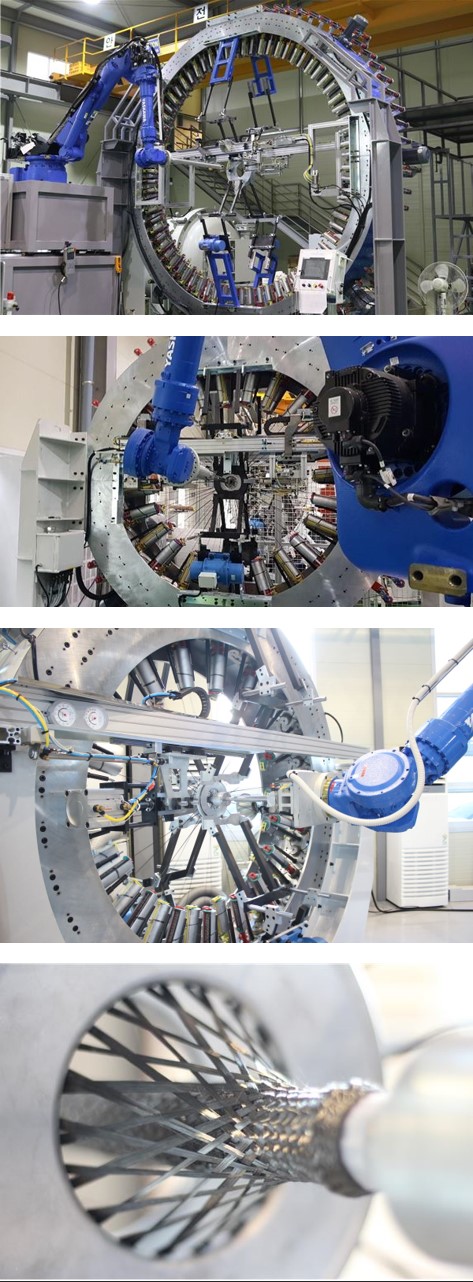

- Preform manufacturing at the center of the equipment frame by mounting the bobbin carrier in the circumference of the braiding machine

- Minimize fiber damage by reducing distance for inter-fiber friction and fiber restoration

- Automate three-dimensional preforms with varying curvature and geometry by applying robots.

Specification

	Radial Braiding 48	Radial Braiding 72	Radial Braiding 144
Dimension(mm)	2300(W) x 1500(L) x 2300(H)	2400(W) x 1600(L) x 2900(H)	5400(W) x 2400(L) x 5500(H)
Braiding Carrier	48EA	72EA	144EA
Axial Yarn	24EA	36EA	72EA
Bobbin Dimension	55mm x 178mm / 350ccm
Speed (Horn gear r.p.m.)	max.120rpm
Axial Yarn Creel	Inner Frame Attachment
Option	Bobbin spare : 48EA	Bobbin spare : 72EA	Bobbin spare : 144EA
Option	Winder 1set, Bobbin winder 1set, Dust collector 1set, Carrier spare : 2EA
