2M, 4M geogrid manufacturing machine

최고관리자

Data 2021-07-23

Views 519

Features

- Used for reinforcement of soil structures or ground, and automatically produces geogrid made of grid structure using polymeric materials.

- A new form of geogrid manufactured by fusion of high-performance fiber-reinforced polymer strips into a 3D cross-structure

- Between each rib in the weft/warp direction: 10 to 100 mm grid-shaped structures

- Mainly used for embankment construction, soft ground construction, road reinforcement construction, law reinforcement construction, etc.

- Structural reinforcement made of polymer materials into regular network structures

- Ground reinforcement is the main focus




Specification

Dimension(mm) : 2200(W) x 2200(L) x 2500(H)

Braiding Carrier : 648set

Axial Yarn : 720EA

Bobbin : 648EA

Rotation Ring : 8 Rings

Fixed Ring : 2 Rings

Carrier Transfer : AIR CYL" 16-50ST

Ring Driving : AIR CYL" 80-150ST

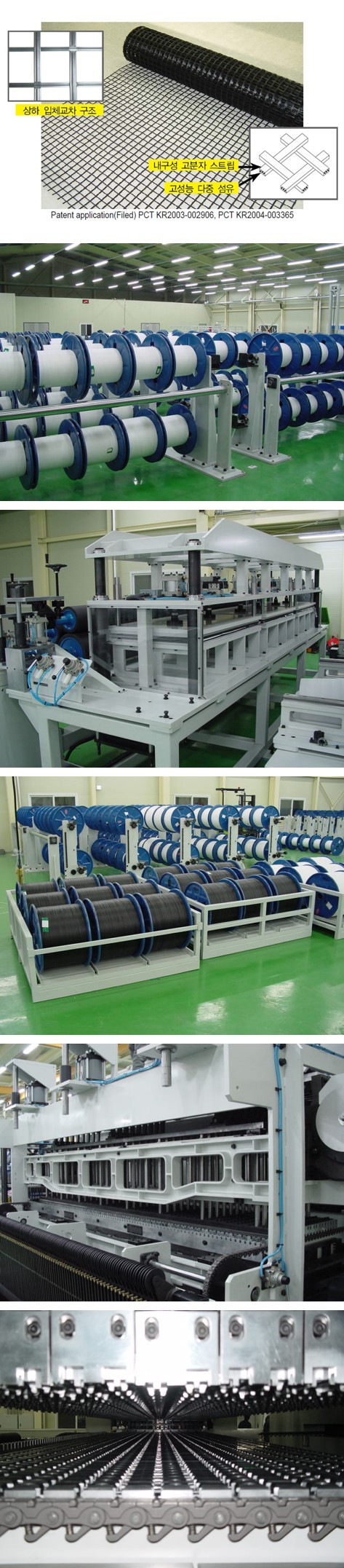

Pictures
