Features

- Resin Transfer Molding (RTM) maintains the inside of the mold in the form of a product in a vacuum, applies heat and pressure to inject resin, and hardens the product.

- Hardener is supplied to two pump consisting of variable proportions

- Receive acetone from an acetone storage container and automatically wash the used lines.

Specification

- Type : RTM System

- Resin Injection method : Air cylinder type

- Resin tank : Max. 5L

- Resin heating temperature : Max. 200℃

- Hardener tank : Max. 5L

- Air pressure : 5kgf/㎠

- Gear Pump capacity

  Resin : 6 cc/rev × 175rpm

  Hardener : 3 cc/rev × 175rpm

- Washing function (Acetone)

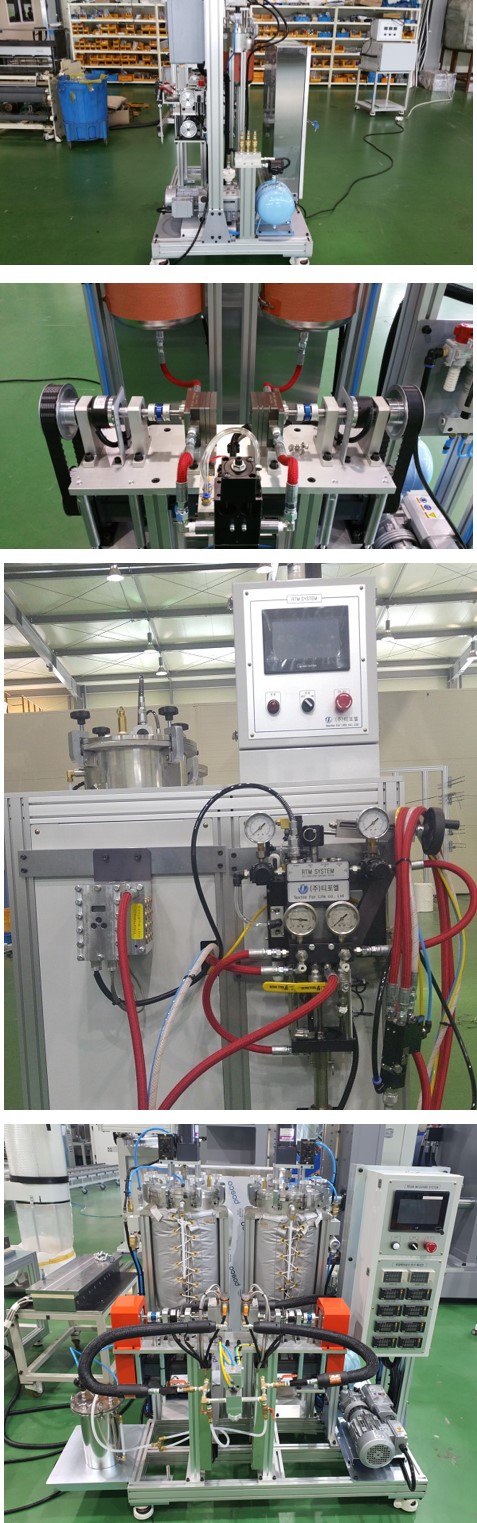

Pictures
