Features

- Use when reinforcement is required for axial and vertical (90°) directions (hoop direction winding)

- Winding is possible regardless of curvature change

- It is applied if reinforcement of warping, shear, external impact, air gap occurrence, etc. is required.

Specification

- Dimension(mm) : 820(W) x 1200(L) x 1850(H)

- Winding height(mm) : 1400mm

- Speed(rpm) : Max. 350rpm

- Disk rotation type

- Material supply structure: 3-inch paper tube insertion

- Tension structure: Spring mounting and replacement

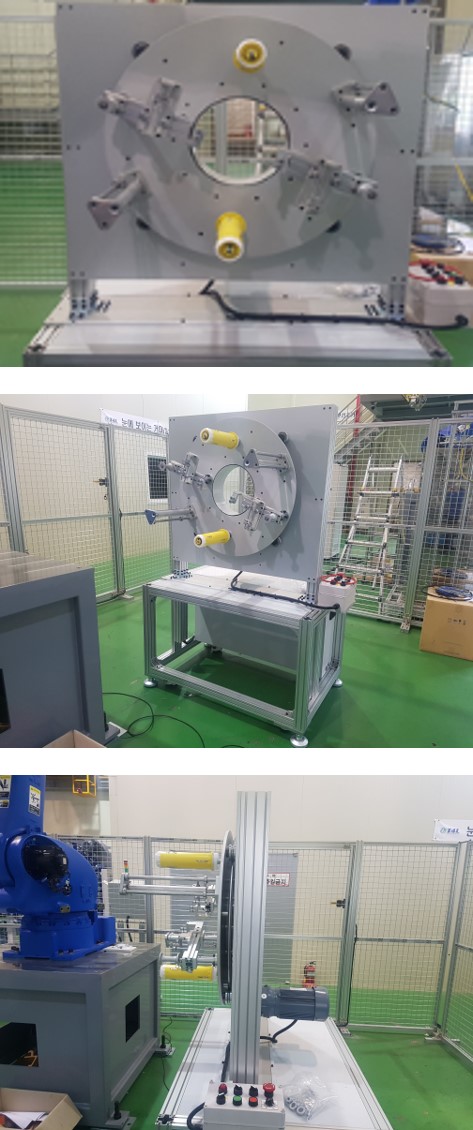

Pictures
