Features

- Lab-scale prepreg sheet manufacturing machine

- Equipment can be modified and configured according to the customer's purpose.

- Prepreg can be produced by automatic calculation of FAW values.

- Excellent performance while simply operating the curing characteristics, viscosity changes, and heat resistance control technology according to the mixing of resin

- Small, easy to mix and use thermosetting resins, and various operation methods to produce prototypes.

- Prepreg sheets that meet the conditions can be manufactured by impregnate carbon, aramid, PE fiber, etc. with thermosetting resin.

Specification

- Equipment size : 3088mm(W) x 1050mm(D) x 1936mm(H)

- Prepreg size : 400mm(W) x 2710mm(L)

- FAW control : 75~400 ± 5g/㎡

- Winding drum size : OD ∅864 x Length 406mm

- Resin bath size : 291mm(W) x 100mm(D) x 112mm(H)

- Resin bath driving stroke : 400mm

- Roving tension control :Powder Brake type

- Motor Speed Control : Inverter Control

- Electricity :13KW

- Control system :PLC control + Touch Screen

- Option : Drum Heating Unit, Resin Dip Tank Heating Unit

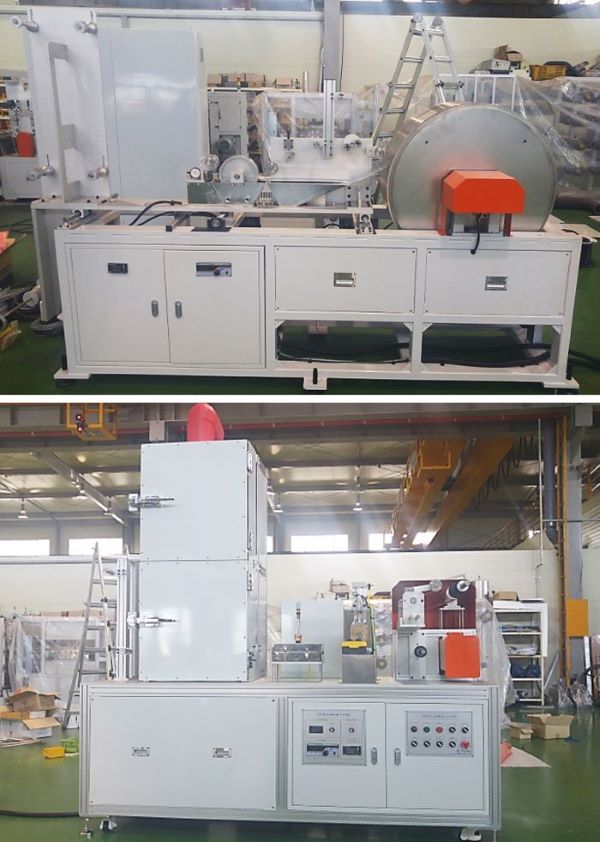

Pictures
