Features

- Manufacture of roving prepreg with uniform resin content by coating superfibers with epoxy, etc.

- Equal amount of resin impregnation by supplying a certain amount of resin

- Braiding, filament winding, and automatic fiber placement (AFP) processes can be manufactured into various types of components.

Specification

- Machine Size : 9,020(W) x 1,400(D) x 4,700(H)

- Bobbin Creel : Bobbin tension control Creel

- Resin impregnation device : Constant delivery device + impregnationdies

- Dry : Vertical shaft type, Ring shapeheater(RT~Max.120℃),

- Winding : traversewinding& tape winding type, Speed: Max. 10m/min, Tension control

- Electricity : PLC control type

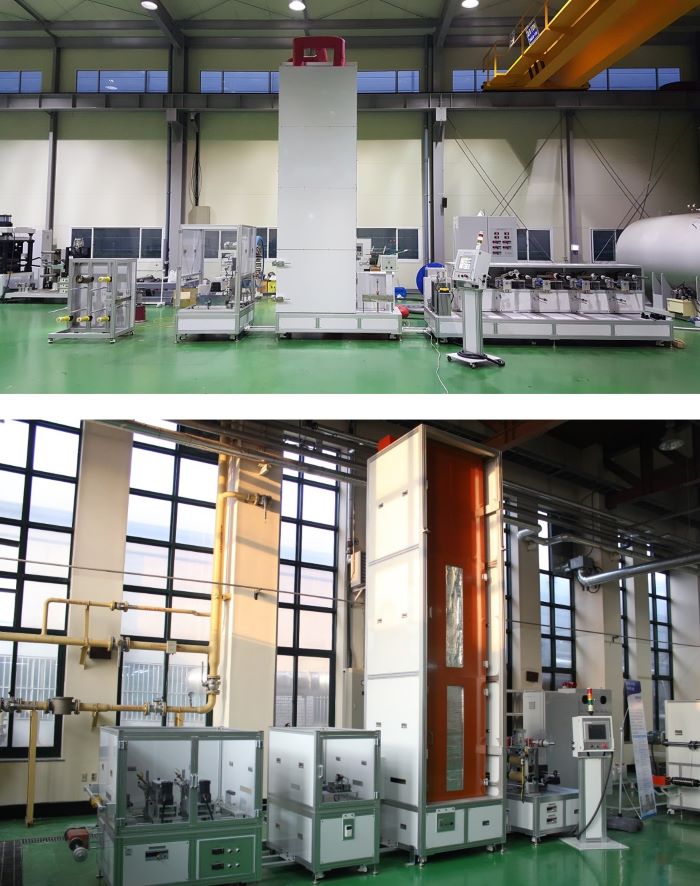

Pictures
