Features

- Multi-layer manufacture of hollow variable composite preforms in 2D braiding machine.

- Machine equipped with a winding device that allows reciprocating motion through the mandrel of the desired shape.

- Increase the layer of the preform in the thickness direction.

- Specific shapes of multi-layer preforms and normal sleeve type preforms can be manufactured.

- Multi-layer and multi-axial structure integrated composite material preform can be manufactured when mandrel is attached.

- Fabric materials can be used to manufacture an integral preform of the seamless structure.

- Integral preforms of various shapes can be manufactured according to the mandrel shape, the number of carrier yarns and the number of axial yarns, fragmentation, number of layers, winding speed, etc.

- Hybrid preform can be manufactured using reinforced fibers with different mechanical properties (Carbon fiber, Aramid fiber, UHMWPE, Glass fiber, etc.).

Specification

- Dimension (mm) : 3240(W) x 2100(L) x 3220(H)

- Type : Horizontal Type

- Braiding Carrier : 128EA

- Axial Yarn : 64EA

- Bobbin Dimension : 55mm x 178mm / 350ccm

- Braiding Motor : 6KW

- Driving Gear : 64EA

- Speed (Horn gear r.p.m.) : max.120rpm

- Axial Yarn Creel : Inner Frame Attachment

- Mandrel : max. Φ350 x 1500mm

- Overbraiding Stroke : max.1500mm

- Overbraiding motor : Servomotor, 5Kw

- Overbraiding Speed : max.1000mm

- Overbraiding Pattern : max.10 Pattern

- Sleeve Winder : 3st Rubber coated roller & motor

- Option : Bobbin winder 1set, Dust collector 1set, Bobbin spare : 128ea, Carrier spare : 2ea

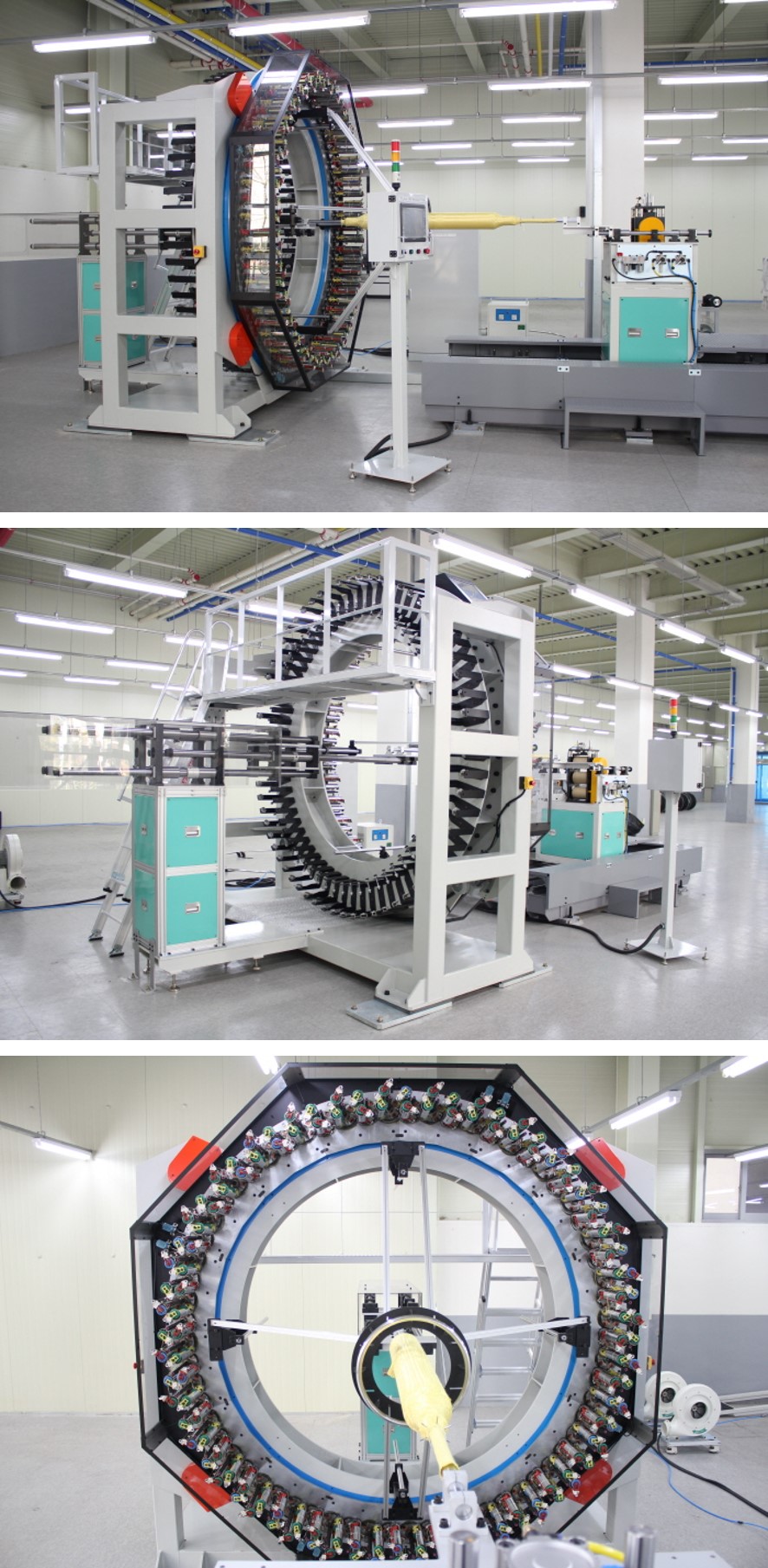

Pictures
